AMS 2 Pro Internal Hub Unit - SAA038-V1

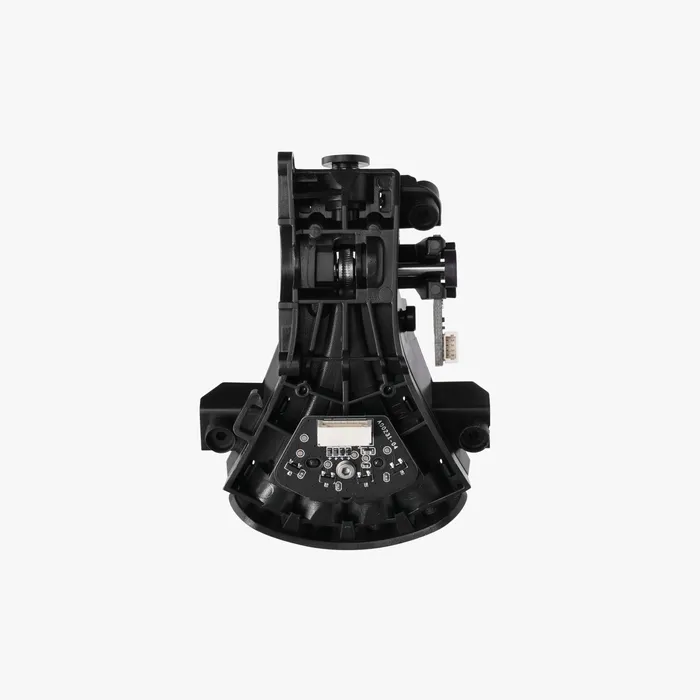

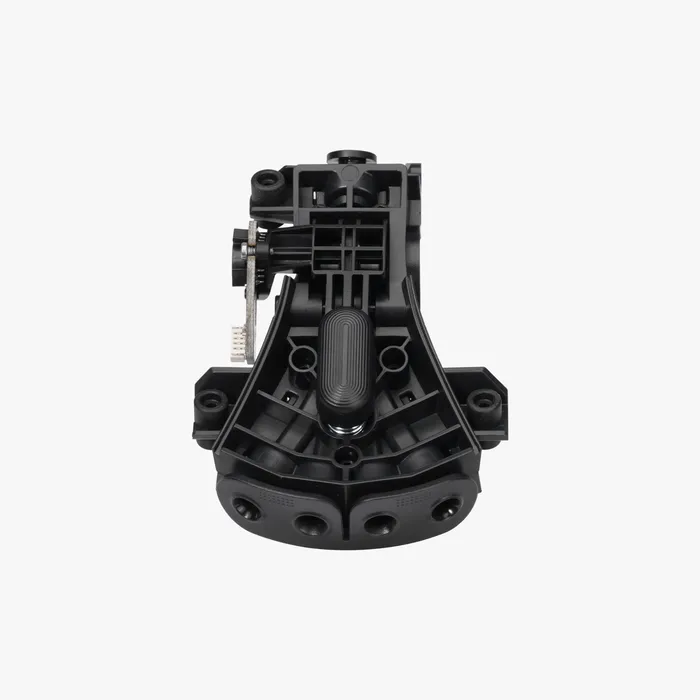

The AMS 2 Pro Internal Hub Unit is specially designed for Bambu AMS 2 Pro, which is located at the rear of AMS 2 Pro and consisits of four Hall sensors, a magnetic rotary encoder, and a motor. It merges four filament slots into one and used to select particular filaments in AMS 2 Pro and convey filaments from AMS 2 Pro to the printer. The Hall sensor detects when the filament reaches a specific position and activates the brushless motor to provide a additional driving force for feeding the filament.

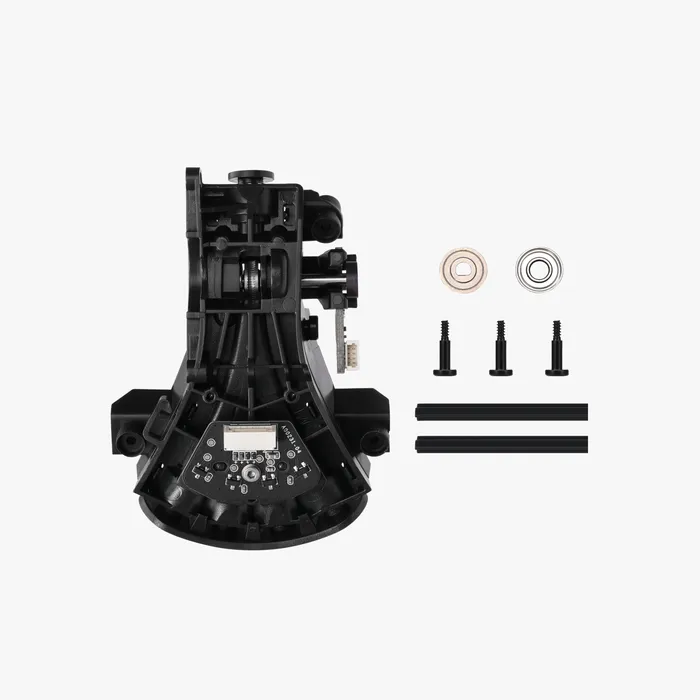

In the Box
- AMS 2 Pro Internal Hub Unit *1
- Extrusion Wheel *1
- M2.5-8 Screw *2
- BT2-11 Screw *3
- 3693ZZ Ball Bearing *1
- Shock-Absorbing Extrusion Silicone *2
Compatibility
AMS 2 Pro
Product Specifications
| Materials | Plastic, Metal | Packaging Size | 100*135*45 mm |
| Color | Black | Packaging Weight | 0.081 kg |
Original: $54.18
-70%$54.18
$16.25Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
The AMS 2 Pro Internal Hub Unit is specially designed for Bambu AMS 2 Pro, which is located at the rear of AMS 2 Pro and consisits of four Hall sensors, a magnetic rotary encoder, and a motor. It merges four filament slots into one and used to select particular filaments in AMS 2 Pro and convey filaments from AMS 2 Pro to the printer. The Hall sensor detects when the filament reaches a specific position and activates the brushless motor to provide a additional driving force for feeding the filament.
In the Box
- AMS 2 Pro Internal Hub Unit *1
- Extrusion Wheel *1
- M2.5-8 Screw *2
- BT2-11 Screw *3
- 3693ZZ Ball Bearing *1
- Shock-Absorbing Extrusion Silicone *2
Compatibility
AMS 2 Pro
Product Specifications
| Materials | Plastic, Metal | Packaging Size | 100*135*45 mm |
| Color | Black | Packaging Weight | 0.081 kg |
